UV-(F)T Series Laser Marking Machine

Product Model｜ UV300FT & UV520T

Product Introduction

The UV-(F)T Series laser marking systems utilize ultraviolet laser sources for precision engraving across various materials, delivering exceptional high-speed, high-accuracy performance.

Product Description

The UV-(F)T Series Laser Marking Systems are engineered for industrial applications requiring permanent, high-quality markings on diverse materials such as metal, plastic, glass, and ceramics. Utilizing advanced ultraviolet laser technology and high-precision 2D scanning, these systems deliver ultra-fine engravings with outstanding clarity. With marking speeds of up to 12,000mm/s and production line speeds of up to 300m/min, the UV-(F)T Series maximizes efficiency and elevates marking quality.

Equipped with a 10-inch touchscreen controller running on a Linux platform, these systems offer user-friendly operation and support various image formats, barcode types, and languages for global industrial environments. Available in air-cooled (UV300FT) and water-cooled (UV520T) configurations, they adapt seamlessly to different operational requirements. The compact design integrates easily into production lines, ensuring reliable performance and low maintenance needs.

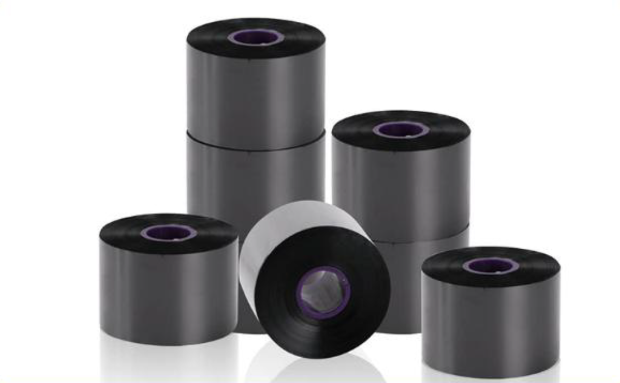

Advantages of UV-(F)T Series Over TTO Systems

Superior Performance

Marking Quality: The UV-FT system delivers permanent, fade-resistant markings without requiring pre-treatment, whereas TTO systems may result in peeling marks with lower reliability.
Traceability: UV-FT produces clear, easy-to-scan markings, ensuring high traceability, while TTO systems are prone to ink smudging, impacting readability.
Marking Range: UV-FT offers a maximum marking area of 100x100mm without additional lenses, whereas TTO systems incur exponentially higher costs for consumables and lenses as the marking area increases.
Material Compatibility: UV-FT can mark virtually any material, whereas TTO systems are limited to specific compatible films.
Zero Downtime: UV-FT eliminates downtime by removing the need for consumable replacements, a common issue with TTO systems.

Cost Efficiency
Over four years, UV-FT systems incur fixed costs of approximately $8,696, significantly lower than the $19,000 or more required for TTO systems due to consumable expenses.

Environmental Benefits
UV-FT systems produce no hazardous waste, unlike TTO systems that require costly disposal of consumable by-products, reducing both environmental impact and operational costs.

Product Specification

Performance Data

Laser Power:
- UV300FT: 3W
- UV520T: 5W
Marking Speed: ≤12,000mm/s
Line Speed: 0–300m/min
Working Distance:
- UV300FT: 8mm
- UV520T: 75mm
Marking Area: 100mm x 100mm
Positioning Method: Blue light positioning
Character Count: Unlimited within the marking area

Software Specifications

Operating System: Linux
Languages Supported: Simplified Chinese, Traditional Chinese, English, German, Spanish, French, Italian, Japanese, Korean, Portuguese, Hindi, Russian, Turkish, Arabic, Persian, and more
Image Formats Supported: BMP, DXF, PNG, JPEG, PLT, JPG
Barcode Types Supported:
- Code128A/B/C, Code39, Code93, EAN13, PDF417, QR, DM, GS1-DM, AztecCode, HanxinCode, DotCode

Hardware Specifications

Laser Type: Ultraviolet laser source
Laser Wavelength: 355nm
Scanning Method: High-precision 2D scanning
Mirror Size: 8.5mm
Controller: Integrated motherboard with 10-inch touchscreen
Cooling System:
- UV300FT: Air-cooled
- UV520T: Water-cooled
Power Supply: 220V / 50–60Hz (110V optional)
Power Consumption:
- UV300FT: ≤400W
- UV520T: ≤750W
Machine Weight:
- UV300FT: 18.5kg (laser head + controller)
- UV520T: 35kg (laser head + controller + chiller)

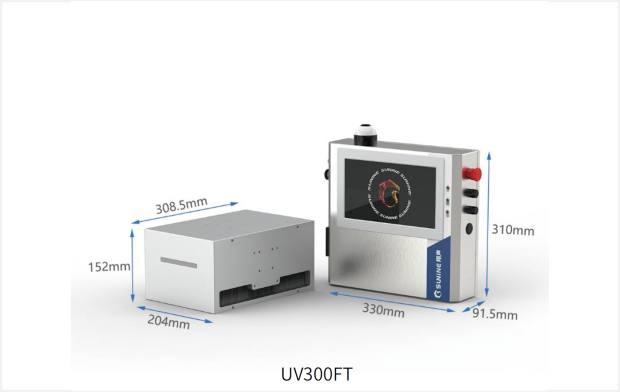

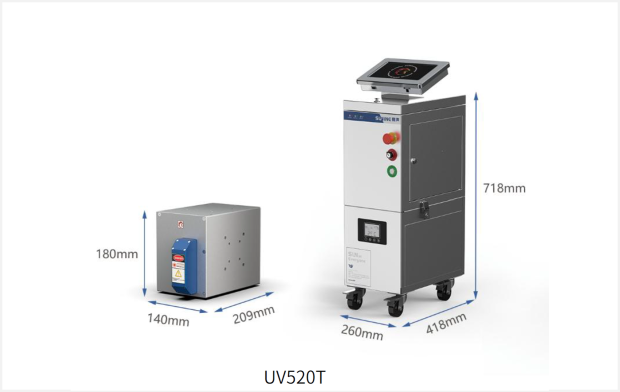

Laser Head Dimensions:
- UV300FT: 308.5mm x 204mm x 152mm
- UV520T: 209mm x 140mm x 180mm
Controller Dimensions:
- UV300FT: 330mm x 92mm x 325mm
- UV520T: 418mm x 260mm x 718mm
Interfaces: RS-232C / USB2.0 / Ethernet, I/O
IP Rating: IP54
Operating Environment: 5–40℃
