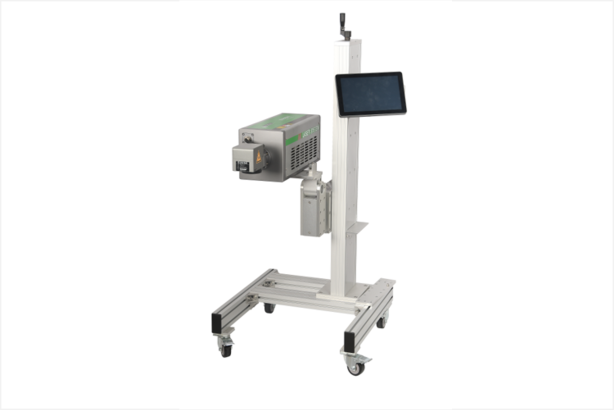

CO2 Laser Marking Machine

Product Model | -

Product Description

The CO2 Laser Marking Machine is engineered for industrial applications, delivering exceptional engraving precision and efficiency. Equipped with a 720-degree rotating laser head and advanced beam control, it processes a wide range of materials, including food packaging, cosmetic containers, beverages, wood, and electronic components. The intelligent touch screen control system, powered by a high-performance core chip, ensures operational stability, user-friendly functionality, and a low failure rate.

With engraving speeds of up to 12,000 mm/s, this system meets the demands of high-volume production while enabling intricate designs and complex markings. Its easy-to-integrate design features a transparent coated field lens for expanded engraving areas, catering to diverse production line configurations. Additionally, the machine supports traceability systems, enhancing product safety and compliance.

Key Features

High Speed and Precision: Engraving speeds up to 12,000 mm/s with advanced beam control.
Rotating Laser Head: 720-degree rotation for optimal adaptability.
Intelligent Operation: Touch screen interface and a high-intelligence core chip for stable and intuitive use.
Material Versatility: Compatible with substrates like plastic, wood, metal, and glass.
Seamless Integration: Compact design and adaptable field lens for flexible production line setups.
Traceability Support: Ensures product safety and quality compliance.

Product Specification

Performance Data

Laser Type: CO2 laser source
Power: 30W or 60W, depending on the selected model
Laser Wavelength: 10.6μm, 10.2μm, 9.3μm, depending on the selected model
Engraving Speed: ≤12000mm/s
Engraving Area: Standard 90mm×90mm, maximum optional 450mm×450mm
Production Line Speed: 0~189m/min (depending on material and print content)
Language Support: English, Chinese, Korean, Russian, German, Arabic, etc.
Barcode/QR Code: CODE39, CODE128, CODE126, QR, Z-Code, DM, Visual code, etc.

Hardware Specifications

Casing Material: Anodized aluminum
Reflector Size: 8.5mm (standard)
Engraving Type: Dot matrix and vector
Cooling System: Air-cooled (water-cooled optional)
Laser Head Dimensions: 661mm×174mm×190mm or 861mm×174mm×150mm, depending on the selected model
Power Supply: 220V
Maximum Power Consumption: ≤800W or ≤1000W, depending on the selected model
Net Weight: 18kg or 23kg, depending on the selected model

Software Specifications

Main Controller: 10.1-inch external controller
Operating System: Linux P9
File Format: PLT
Interface: USB 2.0, sensor and encoder interface
Positioning Method: Red light positioning and infrared focusing
Operating Environment: 0-40℃
