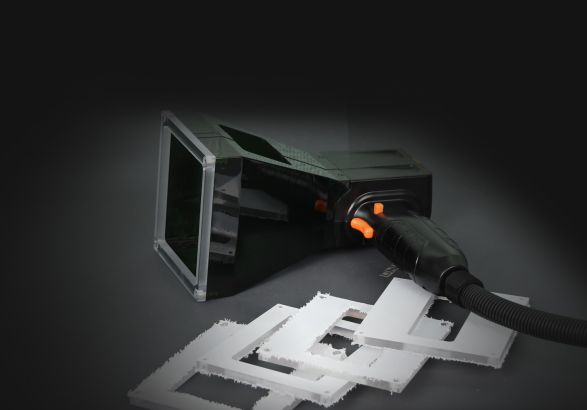

Handheld Laser Marking Machine (Power and Battery Versions)

Product Model｜ -

Product Introduction

This portable, high-resolution marking device supports multilingual text, images, and barcodes, making it ideal for food, electronics, and anti-counterfeiting applications.

Product Description

Engineered for industrial precision, this handheld laser marking machine offers exceptional versatility, supporting marking of text, logos, images, barcodes, and QR codes in multiple languages, including Chinese and English. Designed for use on metal, hard plastic, and glass, it features standard marking areas of 50x50mm and 100x100mm, catering to diverse applications like food safety, electronic component labeling, asset management, and product anti-counterfeiting.

Supporting file formats such as PLT, JPG, DXF, and BMP, it allows seamless file import via USB for quick setup. Choose between an AC-powered model, perfect for continuous operation on fixed production lines, and a battery-powered version, offering long-lasting stability for mobile and specific environments. An intuitive touch control system combined with red light positioning ensures ease of use and pinpoint accuracy, making this device a reliable choice for flexible production settings, enhancing both efficiency and marking quality.

Product Specification

AC-Powered Version (LD20i Ⅱ / LD30i Ⅱ / LD50i Ⅱ)

Performance Data

Laser Type: Fiber Laser Generator
Output Power: ≥20W (LD20i Ⅱ) / ≥30W (LD30i Ⅱ) / ≥50W (LD50i Ⅱ)
Laser Wavelength: 1064nm
Marking Speed: ≤7000mm/s
Maximum Pulse Energy: 0.67mJ (LD20i Ⅱ) / 0.63mJ (LD30i Ⅱ) / 1.1mJ (LD50i Ⅱ)
Frequency Adjustment Range: 27-60 kHz (LD20i Ⅱ) / 40-60 kHz (LD30i Ⅱ) / 45-170 kHz (LD50i Ⅱ)

Hardware Specifications

Material: Engineering Plastic/Aluminum
Reflector Size: Standard 8.5mm
Marking Range: 50mm×50mm (optional) / 100mm×100mm (standard)
Power Supply: 220V
Max Power Consumption: ≤150W/1A (LD20i Ⅱ / LD30i Ⅱ) / ≤350W/2A (LD50i Ⅱ)
Net Weight (Control Box + Handle): 7.7kg (LD20i Ⅱ / LD30i Ⅱ) / 8.6kg (LD50i Ⅱ)
Handle Dimensions: 242mm×79mm×152mm
Control Box Dimensions: 310mm×206mm×307mm

Software Specifications

Operating System: Linux
Supported Marking: Text, Logos, Barcodes, QR Codes
Fonts: Simplified/Traditional Chinese, English, Korean, Russian, Arabic numerals, etc.
Image Formats: PLT, JPG, DXF, BMP
File Import: USB

Battery-Powered Version (LD20i BⅡ / LD30i BⅡ / LD50i BⅡ)

Performance Data

Laser Type: Fiber Laser Generator
Output Power: ≥20W (LD20i BⅡ) / ≥30W (LD30i BⅡ) / ≥50W (LD50i BⅡ)
Laser Wavelength: 1064nm
Marking Speed: ≤7000mm/s
Maximum Pulse Energy: 0.67mJ (LD20i BⅡ) / 0.63mJ (LD30i BⅡ) / 1.1mJ (LD50i BⅡ)
Frequency Adjustment Range: 27-60 kHz (LD20i BⅡ) / 40-60 kHz (LD30i BⅡ) / 45-170 kHz (LD50i BⅡ)

Hardware Specifications

Material: Engineering Plastic/Metal Sheet
Battery Capacity: 12Ah
Battery Usage: 10h 30m (standard) / 2h 50m (continuous)
Charging Time: 4 hours
Net Weight (Control Box + Handle): 9.1kg (LD20i BⅡ / LD30i BⅡ) / 9.8kg (LD50i BⅡ)
Control Box Dimensions: 310mm×206mm×307mm (LD20i BⅡ / LD30i BⅡ) / 310mm×215mm×307mm (LD50i BⅡ)

Software Specifications

Operating System: Linux
Supported Marking: Text, Logos, Barcodes, QR Codes
Fonts: Simplified/Traditional Chinese, English, Korean, Russian, Arabic numerals, etc.
Image Formats: PLT, JPG, DXF, BMP
File Import: USB
