8A High-Resolution Modular Print Head

Product Model｜ 8a

Product Introduction

This modular print head offers a maximum 32.4mm single-head print height, expandable to 128mm with four synchronized heads. Designed for high-speed lines, it supports oil-based and UV inks on both porous and non-porous substrates.

Product Description

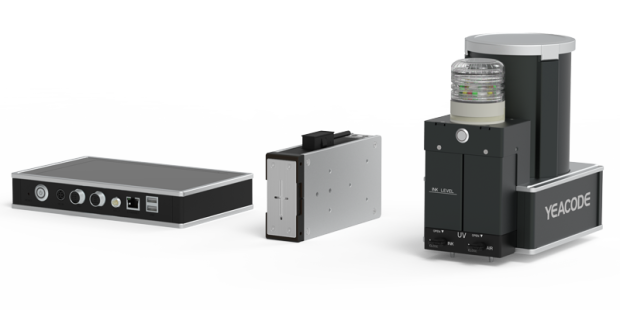

This print head is engineered for high-precision, high-speed printing, with a modular design that allows up to four print heads to be combined or positioned independently, achieving a maximum 128mm print height. Designed for high-quality printing on both porous and non-porous substrates, it supports oil-based and UV inks, enabling reliable printing for diverse industrial applications. The AA system uses a user-friendly 84 controller and MCISS ink supply system, ensuring seamless control and minimal maintenance. Each print file accommodates multiple print head groups, allowing synchronized editing and control, whether for down or side printing orientations.

Product Specification

Performance Data:

Technology: Piezoelectric Printing
Print Engine: Ricoh
Print Speed: 55 meters per minute (Grade 3 Darkness)
Throw Distance: Optimal 0-5mm
Resolution: Vertical 150/300 DPI; Horizontal 300-1200 DPI
Print Height:
Series 81: 0.5-32.4mm
Series 84: 0.5-128mm
Print Direction: Side or Down

Hardware Specifications:

Ink Compatibility: Oil-based, UV inks
Ink Management: Automated ink type detection and tracking
Dimensions: Single Print Head - 172x87x38mm
Certifications: CE, FCC
Operating Temperature: 15°C to 40°C
Storage Temperature: 5°C to 45°C

Software Specifications:

Control System: 84 Controller
Ink Supply System: MCISS
Connectivity: Supports combined or independent control of up to 4 print heads
