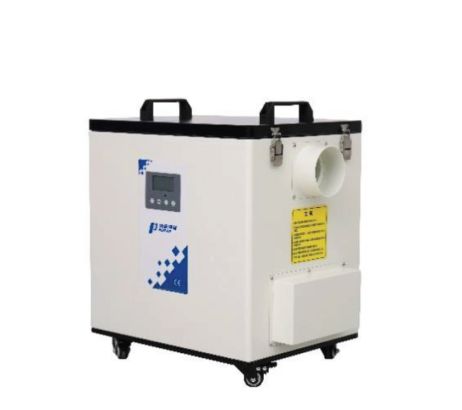

Laser Fume Extractor

Product Model｜ A200 & A500

Product Introduction

Engineered for industrial environments, this fume extractor delivers powerful suction, adjustable airflow, and highly efficient filtration, ensuring a cleaner workspace and adaptability for diverse production needs.

Product Description

Available in two models—A200 and A500—this series of laser fume extractors is equipped with high-efficiency brushless fans, offering stable, low-noise operation, ideal for environments demanding clean air. The adjustable airflow feature is paired with an LCD display for real-time monitoring of settings and operating status. With a filtration efficiency of 99.99% at 0.3 microns, the system also includes a filter clogging alarm to ensure timely replacement and sustained performance.

Designed for industrial applications such as printing, welding, and electronics manufacturing, this system is suitable for indoor exhaust, eliminating concerns about air pollution while maintaining optimal air quality.

Product Specification

Performance Data

Specification Item	A200	A500
Maximum Airflow	300 m³/h	500 m³/h
Maximum Negative Pressure	2500Pa	3200Pa
Filtration Efficiency	≥99.99%@ 0.3 microns	≥99.99%@ 0.3 microns
Filtration Precision	≥0.1 microns	≥0.1 microns
Operating Noise	≤55dBA	≤63dBA

Hardware Specifications

Specification Item	A200	A500
Input Power	0.2KW	0.35KW
Voltage Frequency	110V/220V, 50-60HZ	110V/220V, 50-60HZ
Machine Dimensions	250 x 430 x 412mm	360 x 510 x 565mm
Net Weight	15kg	35kg
Interface Diameter	50mm	75mm

Software Specifications

Specification Item	A200	A500
Filter Type	F5 Primary Cotton Filter / F8 Medium Efficiency Filter	F8 Medium Efficiency Filter Bag / H14 High Efficiency Filter
