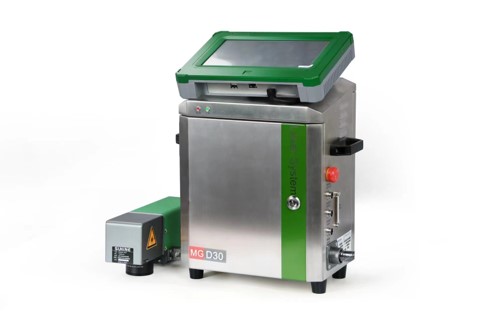

Fiber Laser Marking Machine

Product Model | Fiber 20W、30W、50W

Product Description

Engineered for industrial-grade applications, this fiber laser marking machine delivers exceptional precision and adaptability. It features a 720-degree rotating laser head, accommodating diverse production line configurations, and high-precision beam control for intricate marking on high-density materials while preserving product aesthetics and quality.

The machine integrates an independently developed intelligent touch screen control system with a robust high-intelligence computing chip, ensuring stable performance, intuitive operation, and minimal downtime. Achieving marking speeds of up to 12,000 mm/s, it efficiently processes complex designs and diverse content.

Designed for seamless integration, the laser system includes a high-transparency coated field lens that expands the marking area and a compact, versatile laser head. It supports high-configuration options and connectivity with traceability systems, enhancing product safety and enabling efficient tracking management.

Product Specification

Performance Data

Power: 20W, 30W, 50W, depending on the selected model
Laser Wavelength: 1064nm
Marking Speed: ≤12000mm/s
Marking Method: High-precision two-dimensional scanning
Marking Range: Standard 110mm×110mm, optional up to 500mm×500mm
Production Line Speed: 0~189m/min (depending on material and marking content)
Language Support: English, Chinese, Korean, Russian, German, Arabic, etc.
Barcode/QR Code Support: CODE39, CODE128, CODE126, QR, Z-Code, DM, Visual code, etc.

Hardware Specifications

Casing Material: Anodized aluminum
Main Controller: 10.1-inch external controller
Cooling System: Air-cooled (water-cooled optional)
Laser Head Dimensions: 303mm x 83mm x 107mm
Controller Dimensions: 300mm x 200mm x 400mm
Positioning Method: Red light positioning and infrared focusing
Reflector Size: Standard 8.5mm
Power Supply: 220V
Maximum Power Consumption: ≤550W
Net Weight: 18kg
Interface: USB2.0 / Photonic Trigger / Synchronizer

Software Specifications

Operating System: Linux P9
Supported File Format: PLT
Marking Types: Dot matrix and vector
