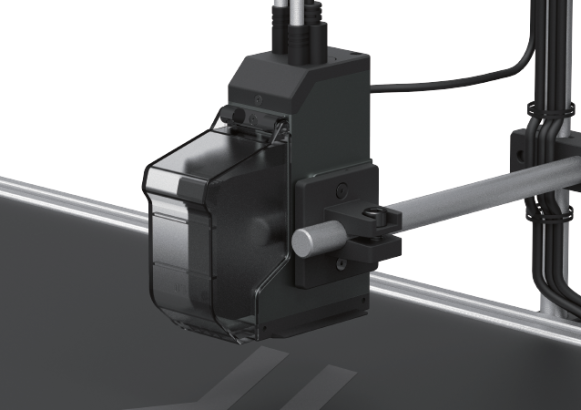

Xeme Dual Nozzle Inline Inkjet Printer (1")

Product Model｜ Xeme

Product Introduction

A dual-nozzle inkjet printer delivering high-speed, large-area marking for demanding automated production environments.

Product Description

This 1-inch dual-nozzle inkjet printer is engineered for industrial production lines, delivering high-resolution prints with exceptional clarity and stability. Featuring real-time printing capabilities with a 10ms response time, it ensures seamless operation for high-speed environments. Equipped with a 7-inch resistive touch screen, the system supports on-the-fly editing and variable data printing, making it ideal for diverse industrial applications.

The printer is compatible with various languages and can print text, barcodes, images, and database content, supporting both fixed and dynamic data. Its flexible design accommodates downward and sideward printing, with a printing height of up to 50.8mm and a speed of 76 meters per minute. Advanced ink management ensures compatibility with water-based, solvent-based, UV, and invisible inks, with automatic ink type detection and consumption tracking to maximize efficiency.

Product Specification

Performance Data

Printing Resolution: Horizontal: 75–1200 DPI; Vertical: 75–600 DPI
Printing Speed: Up to 76 meters per minute
Printing Height: 2–50.8mm
Printing Distance: 1–5mm
Printing Content: Text, serial numbers, date/time, barcodes, images, files, database, and network data
Supported Barcode Types: UPCA, UPCE, EAN13, EAN8, CODE39, CODE128, CODE93, EAN128, QR, DataMatrix, GridMatrix

Hardware Specifications

Controller Dimensions: 187 × 124 × 37mm
Nozzle Dimensions: 145 × 128 × 68mm
Display: 7-inch resistive touch screen, 1024 × 600 resolution
Interfaces: USB 2.0, RS232, RJ45; optional HDMI or aviation connectors
Power Supply: Input: AC110–240V; Output: DC12V@5A

Software Specifications

Operating System: Linux 4.19
Supported Languages: English, Simplified Chinese, Traditional Chinese, Korean, Japanese, Vietnamese, Thai, Italian, and more
Database Compatibility: MySQL, SQL Server
Font Support: Supports any installed font

Ink and Compatibility

Supported Ink Types: Water-based, solvent-based, UV, invisible inks
Ink Management: Automatic ink type detection, optimized printing parameters, and ink consumption tracking

Networking and Connectivity

Network: WIFI (802.11b/g/n), Bluetooth 4.0, wired network

Certifications

CE, FCC

Installation

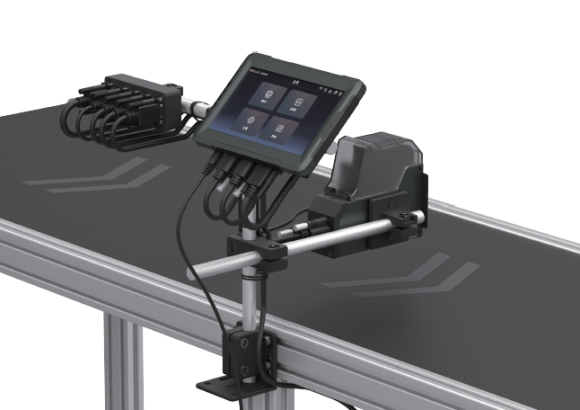

Supports downward and sideward printing configurations.
