8C High-Resolution Modular Print Head

Product Model | 8c

Product Description

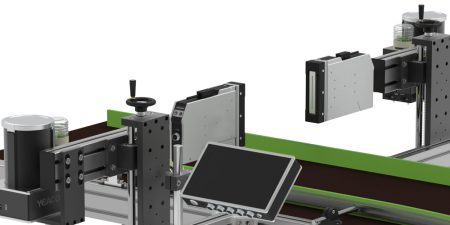

The printhead is engineered for high-quality, high-speed printing with a modular design that supports up to four printheads, either combined or independently positioned. The maximum print height of 280mm allows for versatile applications in production environments. It supports both oil-based and UV inks, suitable for a variety of substrates. The system can be controlled using either the 81 or 84 controllers, offering efficient operation with minimal maintenance. Each print file can include different groups of printheads, allowing simultaneous editing and control of multiple print surfaces, either sideward or downward. The system is designed for easy maintenance and offers flexibility in printhead positioning.

Product Specification

Performance Data:

Technology: Piezoelectric Printing
Print Engine: SEIKO
Print Speed: 1-30 meters per minute (at 360 DPI)
Throw Distance: 0-5mm (Optimal)
Resolution:
- Vertical: 360 DPI
- Horizontal: 180 DPI / 360 DPI
Print Height:
- 81 Series: 0.5-71.8mm
- 84 Series: 0.5-280mm
Print Orientation: Sideward/Downward
Ink Compatibility: Oil-based, UV ink
Ink Management: Auto-read ink type and tracking of ink usage

Hardware Specifications:

Control System: 81 Controller, 84 Controller
Ink Supply System: MCISS
Dimensions:
- Single Printhead: 226.5mm x 144mm x 43.5mm
Certifications: CE, FCC
Operating Temperature: 15°C to 40°C (59°F to 104°F)
Storage Temperature: 5°C to 45°C (41°F to 113°F)
