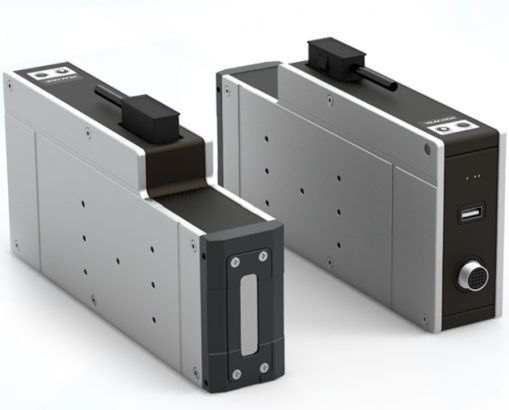

8F High-Resolution Modular Print Head

Product Model｜ 8f

Product Introduction

This industrial-grade print head delivers 32.4mm single-head print height, expandable to 128mm with four synchronized heads, ensuring high-speed, high-resolution printing on porous and non-porous substrates.

Product Description

This advanced printhead features a 32.4mm single-head print height, expandable to 128mm using up to four synchronized heads. It supports both UV and oil-based inks, providing exceptional versatility for various substrates and high-quality coding applications. Designed for seamless integration into automated systems, the printhead ensures efficient performance with its siphon and negative-pressure ink supply system. Features like one-button purging, low ink detection, built-in heating, and auto-stirring enhance reliability and simplify maintenance, making it ideal for demanding industrial environments.

Product Specification

Performance Data:

Technology: Piezoelectric Printing
Print Engine: Ricoh MH2420 (Gen4)
Print Speed: Up to 120m/min
Throw Distance: 0-5mm (Optimum)
Resolution: Horizontal: 300/600/900 DPI; Vertical: 150/300 DPI
Print Height: 32.4mm (Expandable to 128mm with 4 heads)
Print Orientation: Sideward/Downward
Ink Compatibility: Oil-based, UV inks

Hardware Specifications:

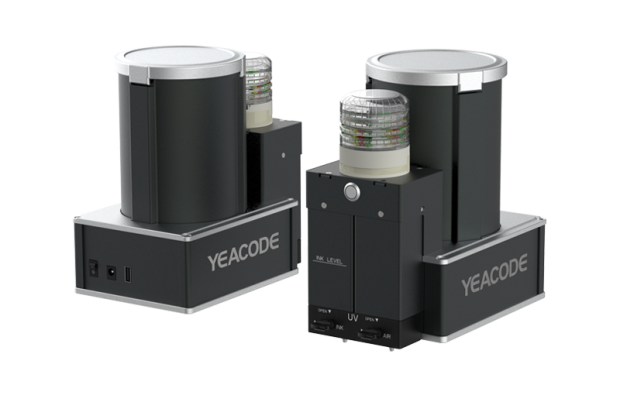

Ink Supply System: Multi-Function Continuous Ink Supply System (MCISS)
- Supports siphon and negative-pressure dual-mode ink supply
- Includes features such as one-button purging, low ink detection, built-in heating, and auto-stirring
Hardware Dimensions: 241 × 110 × 45mm
Certifications: CE, FCC

Software Specifications:

Ink Management: Auto-detection of ink type and tracking of ink usage
Compatibility: Optimized for integration with automated systems requiring high resolution and reliability
