8B High-Resolution Modular Print Head

Product Model｜ 8b

Product Introduction

This print head provides a single-unit print height of up to 71.8mm and supports configurations with up to 4 units, achieving a combined maximum print height of 280mm.

Product Description

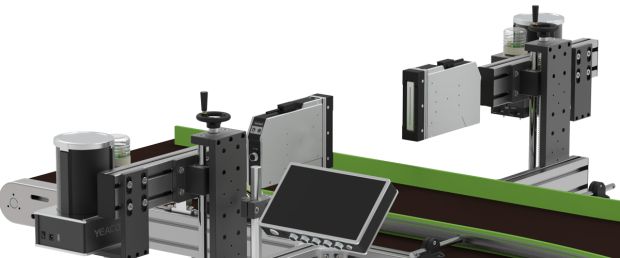

This printhead is designed for high-speed, high-quality printing, offering a modular system that supports up to four printheads, either combined or positioned independently. It allows a maximum print height of 280mm and is compatible with both oil-based and UV inks for diverse substrates. The system can be controlled with either an 81 or 84 controller, ensuring efficient operation and minimal maintenance. With the flexibility to edit and control multiple printhead groups within a single print file, this system is ideal for complex production environments. It supports both sideward and downward print orientations and is built for ease of maintenance.

Product Specification

Performance Data:

Technology: Piezoelectric Printing
Print Engine: SEIKO
Print Speed: 1-55 meters per minute (at 180 DPI)
Throw Distance: 0-5mm (Optimal)
Resolution:
- Vertical: 180 DPI
- Horizontal: 180/300/360 DPI
Print Height:
- 81 Series: 0.5-71.8mm
- 84 Series: 0.5-280mm
Print Orientation: Sideward/Downward
Ink Compatibility: Oil-based, UV ink
Ink Management: Auto-read ink type and tracking of ink usage

Hardware Specifications:

Control System: 81 Controller, 84 Controller
Ink Supply System: MCISS
Dimensions:
- Single Printhead: 226.5mm x 144mm x 43.5mm
Certifications: CE, FCC
Operating Temperature: 15°C to 40°C (59°F to 104°F)
Storage Temperature: 5°C to 45°C (41°F to 113°F)
