8D High-Resolution Modular Print Head

Product Model｜ 8d

Product Introduction

Achieves up to 54.1mm print height per head with 600 DPI resolution and supports up to four heads combined for a maximum height of 216mm, delivering exceptional performance in high-speed production environments.

Product Description

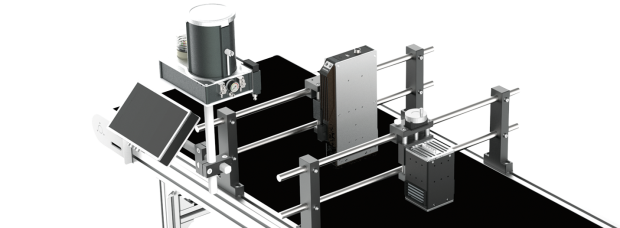

This advanced modular printhead supports up to 216mm total print height through seamless combination, separation, and stitching of up to four printheads. With a maximum print speed of 260 meters per minute, it ensures high-quality sideward or downward printing on both porous and non-porous substrates. It accommodates oil-based and UV inks, making it suitable for diverse production environments. The ink supply system, featuring dual-mode siphon and negative pressure options, includes one-button purging, low ink detection, built-in heating, and auto-stirring for optimal stability and reliability. The system is controlled using either the 81 or 84 controllers, enabling efficient operation across a range of applications.

Product Specification

Performance Data:

Technology: Piezoelectric Printing
Print Engine: Ricoh MH5420
Print Speed: Up to 260 meters per minute
Throw Distance: 0-5mm (Optimal)
Resolution:
- Horizontal: 150/300/600 DPI
- Vertical: 150/300/600 DPI
- High-speed alternating printing: 150x150 DPI and 300x300 DPI
Print Height:
- Single Head: Up to 54.1mm
- Four Heads Combined: Up to 216mm
Print Orientation: Sideward/Downward
Ink Compatibility: Oil-based and UV inks
Ink Management: Automatic ink type detection, usage tracking

Hardware Specifications:

Ink Supply System: Multi-Function Continuous Ink Supply System (MCISS)
- Features: Dual-mode siphon and negative pressure, one-button purging, low ink detection, built-in heating, auto-stirring
Control System: 81 Controller, 84 Controller
Dimensions: 158mm x 279.7mm x 44.5mm
Certifications: CE, FCC
Operating Temperature: 15°C to 40°C (59°F to 104°F)
Storage Temperature: 5°C to 45°C (41°F to 113°F)
