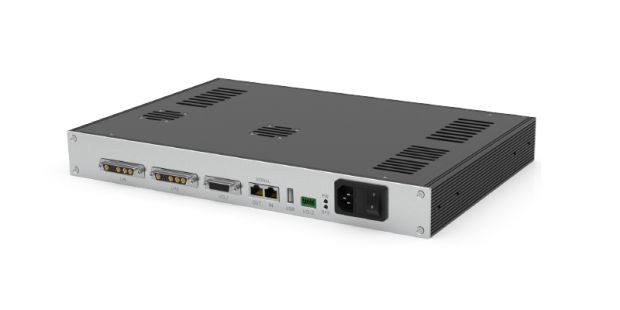

UV Control System – 952 Series

Product Model｜ 952

Product Introduction

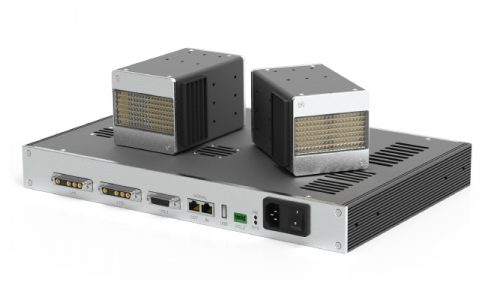

A scalable UV curing system supporting up to two UV LED lamps, designed for precise, high-power industrial curing applications.

Product Description

The 952 Series UV Control System provides advanced curing solutions by supporting up to two UV LED lamps, offering a maximum combined output of 1000W with single-lamp output reaching 500W. This system features centralized management through the 8 Series Controller, enabling seamless integration and intuitive operation. Multiple control modes, including Auto, Always On, and Manual, cater to a range of production requirements.

Its open architecture with protocol support facilitates integration with automated systems, making it ideal for industries requiring high-efficiency UV curing. The compact, scalable design ensures flexibility in deployment, meeting the needs of both small-scale and large-scale production environments.

Product Specification

Performance Data

Control Modes: Auto, Always On, Manual
Output Power: Maximum 1000W (500W per lamp)
Compatible UV LED Lamps: 9LH3474, 9LH7434, 9LH5656

Hardware Specifications

Power Input: 100–240V AC, 50–60Hz
Connectable Lamps: Up to 2, cascadable
Controller Dimensions: 395 × 248 × 45mm
Working Temperature: -18°C to 40°C
Storage Temperature: -18°C to 60°C
Certifications: CE, FCC

Software Specifications

Integration: Open architecture with protocol support
Centralized Management: Operated via 8 Series Controller

The 952 Series is optimized for high-demand industrial applications, delivering reliability, scalability, and exceptional performance for diverse UV curing needs.
