UV Control System – 924 Series

Product Model｜ 924

Product Introduction

A high-capacity UV curing solution supporting up to four UV LED lamps, ensuring precise and efficient performance for demanding industrial applications.

Product Description

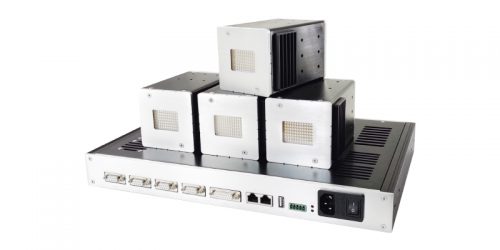

The 924 Series UV Control System is engineered to meet the needs of advanced industrial UV curing applications. This system supports up to four UV LED lamps, with a combined maximum output power of 1000W (250W per lamp), making it ideal for large-scale and high-speed production environments.

Centrally managed by an advanced controller, the system offers multiple operational modes, including Auto, Always On, and Manual, providing flexibility and precision for diverse production lines. Its open architecture supports integration with automated workflows through standard protocols, enabling seamless compatibility with existing systems. Designed with scalability in mind, the system features a cascade connection option for expanded functionality.

Product Specification

Performance Data

Control Modes: Auto, Always On, Manual
Maximum Output Power: 1000W (250W per lamp)
Compatible UV LED Lamps: 9LH3734

Hardware Specifications

Power Input: 100–240V AC, 50–60Hz
Number of Connectable Lamps: Up to 4
Controller Dimensions: 395 × 248 × 45mm
Operating Temperature: -18°C to 40°C (0°F to 122°F)
Storage Temperature: -18°C to 60°C (0°F to 140°F)
Certifications: CE, FCC

Software Specifications

Integration Capability: Open architecture with support for development protocols
Centralized Management: Operates via advanced controllers

The 924 Series is the perfect choice for high-demand production environments requiring scalability, precision, and compatibility.
