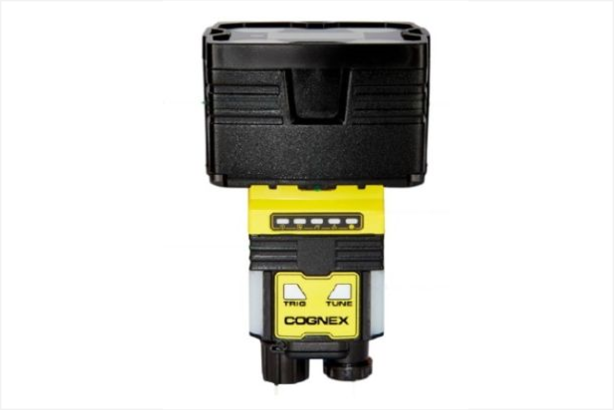

Print Inspection System – Standard

Product Model｜ 2800 / 2801 / 2802

Product Introduction

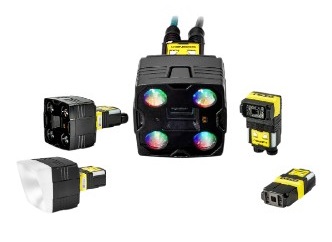

A high-resolution inspection system with advanced CMOS sensors and multi-color LED illumination, engineered for precise, automated quality control in demanding industrial environments.

Product Description

This print inspection system is tailored for a wide range of industrial applications, including verifying bottle cap seals, assessing package seal integrity, inspecting printed circuit board (PCB) components, confirming accurate component placement, and classifying packaging marks.

The system is equipped with 1/2.8-inch CMOS monochrome and color sensors, offering a 6.17 mm diagonal and 2.8 µm square pixel design. It supports resolutions of up to 2 MP and image acquisition frequencies of up to 45 Hz.

Engineered for seamless integration, the system supports multiple communication protocols, including TCP/IP, PROFINET, and EtherNet/IP, allowing it to integrate effortlessly into existing automation frameworks. The robust design ensures reliable performance, making it ideal for precision-demanding industrial applications.

Product Specification

Including Models 2800, 2801, and 2802

Performance Data

Image Sensor: 1/2.8 inch CMOS, monochrome and color
Resolution:
SVGA1 (720x540) (2800 monochrome only)
1.6 MP (1440x1080) (2801 only)
2 MP (1920x1080) (2802 only)
Electronic Shutter Speed: Minimum exposure 29 μs; maximum exposure 10 ms (internal lighting) / 200 ms (external lighting)
Frame Rate: Up to 45 Hz
Power Consumption: ≤7.5W
Operating Temperature: 0-40 °C
Storage Temperature: -10–60 °C
Operating and Storage Humidity: <95% (non-condensing)
Protection Level: IP67 Certified

Hardware Specifications

Input/Output:
Discrete Input: 2 opto-isolated
Discrete Output: 2 opto-isolated
User-configurable I/O points: 2
Status Indicators: 5 LED indicators and a buzzer
Communication Interface: Ethernet interface
Communication Protocols: TCP/IP, PROFINET, EtherNet/IP™, SLMP, OPC/UA, FTP
Materials: ABS, acrylic, aluminum alloy, silicone, stainless steel, and other durable materials
Weight:
6.2 mm lens: 141 g
16 mm lens: 169 g
Multicolor illumination light: 290 g
Right-angle configuration adds 50 g
Safety Certifications: EU CE, US FCC, TUV CB NRTL IEC 61010
RoHS Certification: Compliant

Software Specifications

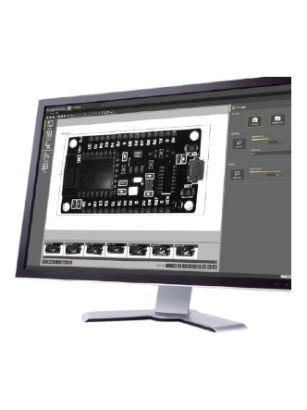

Vision Software Suite: In-Sight vision suite
Function Access:
In-Sight EasyBuilder access
In-Sight Spreadsheet access (for 2801 and 2802)
