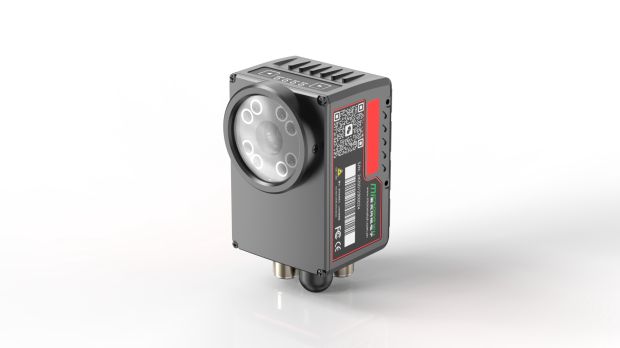

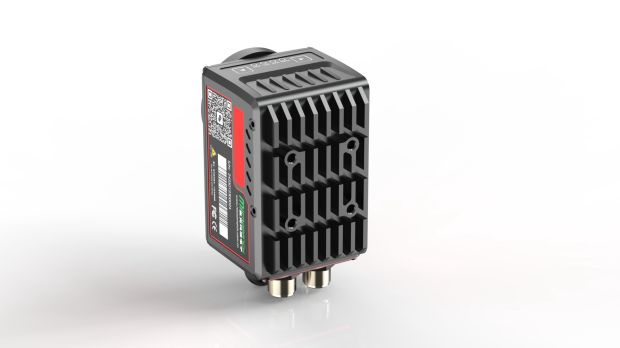

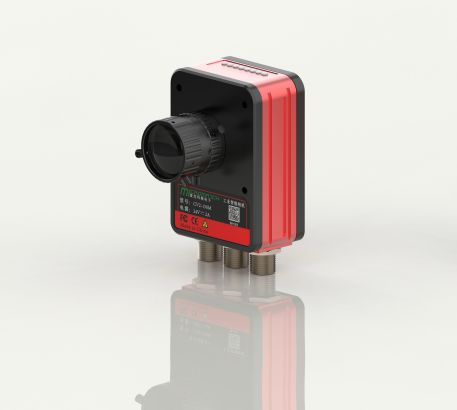

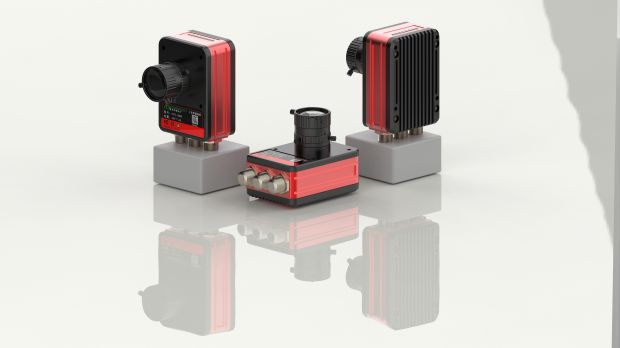

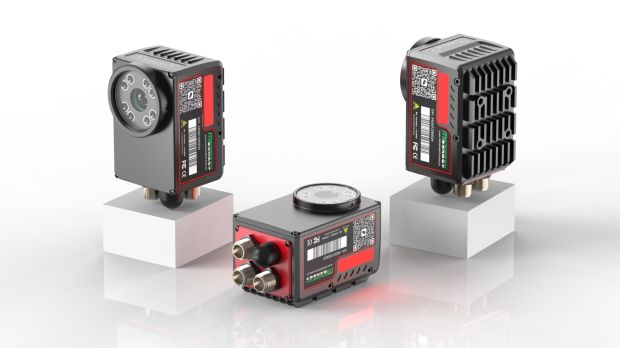

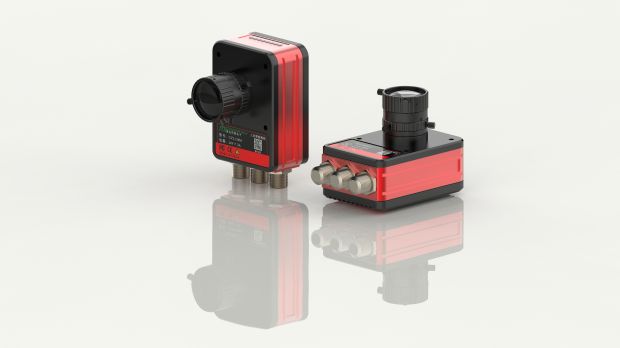

Print Inspection System – Integrated (V3 Smart Camera)

Product Model｜ V3

Product Introduction

The V3 Smart Camera is a cost-effective, industrial-grade vision solution combining powerful algorithms and versatile communication interfaces to meet diverse automation needs.

Product Description

The V3 Smart Camera is engineered for industrial automation, delivering exceptional durability and performance in demanding environments. Its rugged industrial-grade housing offers superior resistance to vibration and impact, ensuring reliable operation under harsh conditions.

Equipped with comprehensive hardware interfaces, including RS-232, Gigabit Ethernet, USB, VGA, and digital I/O, the V3 Smart Camera facilitates seamless data exchange with various equipment. Its robust vision algorithms enable precise positioning, measurement, defect detection, character recognition, and presence verification, making it ideal for industries such as food and beverage, pharmaceuticals, logistics, aviation, semiconductors, renewable energy batteries, and robotic navigation.

The V3 Smart Camera supports remote operation via an integrated wireless transmitter, enabling monitoring and management through smartphones and tablets. Its centralized monitoring capability simplifies the management of multiple devices, enhancing operational efficiency. Supporting protocols such as TCP, UDP, FTP, Modbus, and EtherNet/IP, this camera integrates easily into existing industrial systems.

With a high protection rating of IP67, the V3 Smart Camera is dust- and water-resistant, ensuring reliable performance in challenging environments. Additional features, including a built-in zoom lens, combination lighting, and real-time VGA output, enable immediate monitoring and streamlined maintenance. The intuitive design, combined with its broad power input range of 10–30V, ensures stable and reliable operation across diverse applications.

Product Specification

Performance Data

Model	V3-150M	V3-150C	V3-500M
Resolution	1.56MPixel 1440x1080	1.56MPixel 1440x1080	5.0MPixel 2560x1936
Frame Rate	60fps	60fps	54fps
Sensor	1/2.9” CMOS	1/2.9” CMOS	1/1.8” CMOS
Pixel Size	3.45x3.45µm	3.45x3.45µm	2.8x2.8µm
Color	Monochrome	Color	Monochrome
Exposure	Global Shutter	Global Shutter	Global Shutter

Hardware Specifications

Inputs: 3 channels (TRIGGER for image capture)
Outputs: 3 channels (FLASH-OUT for lighting control)
Network Interface: Gigabit Ethernet
Serial Port: RS-232
Protection Rating: IP67
Power Supply/Consumption: 24V (10–30V), 0.3A / 8W
Other: Built-in zoom lens and combination lighting, rich I/O interfaces

Software Specifications

Internal Functions: High-precision positioning, measurement, character recognition
Supported Protocols: TCP, UDP, FTP, Modbus, EtherNet/IP
Communication Protocols: Proprietary protocol, MODBUS protocol
Remote Operation: Smartphone and tablet support for wireless control
Centralized Monitoring: Unified management of multiple devices

The V3 Smart Camera is the ultimate solution for efficient, reliable industrial automation, offering unparalleled flexibility and performance for a wide range of applications.
