High-Resolution Piezo Inkjet Controller - Advanced

Product Model｜ 84

Product Introduction

This versatile controller supports multiple printhead types, UV curing systems, and variable data printing, offering a powerful and reliable solution for high-resolution industrial inkjet printing in demanding applications.

Product Description

The High-Resolution Piezo Inkjet Controller is a cutting-edge system designed for high-resolution industrial marking and coding needs. It supports a wide range of printheads and UV curing systems, allowing for tailored solutions in diverse production environments. Featuring an Android-based 8-inch capacitive color touchscreen, the controller provides a user-friendly interface with support for multiple languages and input methods, ensuring seamless operation.

The system excels in handling static and dynamic data, including linear and matrix barcodes, variable text, dates, counters, and images. With its robust design, it offers a comprehensive SDK and multiple hardware interfaces such as PLC, RS232, RS485, and Ethernet, facilitating seamless integration into automated systems. Its open platform architecture allows quick customization through plug-ins and updates, delivering unmatched flexibility.

Engineered for demanding industrial applications, the controller ensures streamlined integration and outstanding performance, making it an essential tool for high-resolution inkjet printing tasks.

Product Specification

Performance Data

Technology: High-resolution piezoelectric inkjet

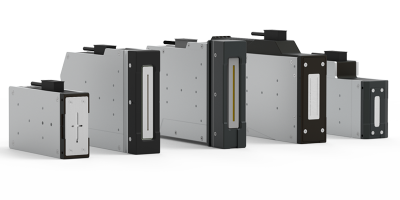

Adapted Printheads: Compatible with various printheads (e.g., 8A, 8B, 8C, 8D, 8F)
Print Content: Static & dynamic variables (text, dates, shifts, counters, databases, images, and shapes)
Barcode Types:
- Linear: C25INTER, EAN8/EAN13, GS1 EAN128, CODE39, CODE93, CODE128 (A/B/C), UPCA, UPCE, ITF14, RSS series
- Matrix: QRCODE, GS1 QRCODE, PDF417, DataMatrix, GS1 DataMatrix, GridMatrix, AZTEC
Print Modes: Standard, continuous, back & forth
Supported Databases: Text, Excel, Access, SQL Server

Hardware Specifications

Operating System: Android (Controller), Windows (PC)

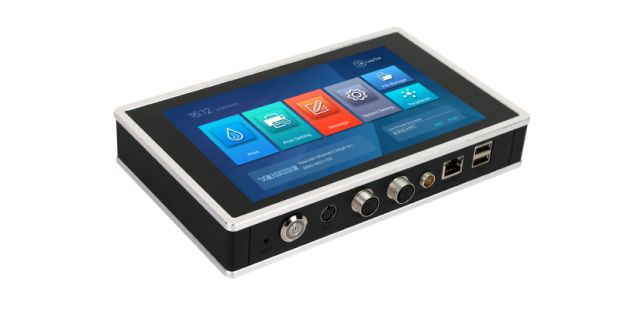

Display: 8-inch industrial-grade capacitive color touchscreen, resolution 1280 × 800
Ports:
- USB × 2
- 12-pin I/O_1 (PLC, RS485, alarm light)
- 7-pin I/O_2 (encoder, photocell, RS232)
- Ethernet
Power: 110-240V input; 24V, 5A output
Dimensions: 222 × 143 × 38mm
Certifications: CE, FCC

Software Specifications

Language Support: English (default), Chinese, and others
Fonts: DroidSansFallback, Arial, and more
Input Methods: Multiple Android input options
Customizability: Open platform for tailored solutions with plug-ins and updates

Environmental Conditions

Working Temperature: 15°C (59°F) to 40°C (104°F)
Storage Temperature: 5°C (41°F) to 45°C (113°F)
