High-Resolution Piezo Inkjet Controller - Standard

Product Model｜ 81

Product Introduction

This versatile Android-based controller integrates with various printheads and UV curing systems, offering seamless data management, customization, and integration for high-resolution industrial printing.

Product Description

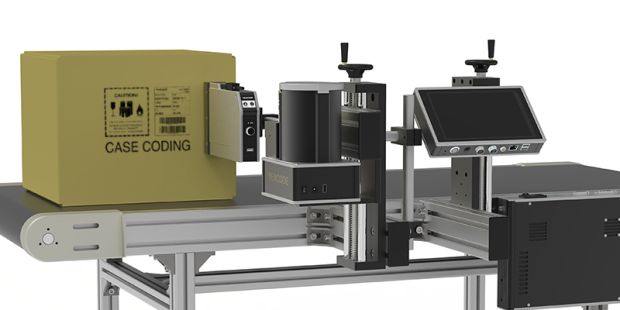

The High-Resolution Piezo Inkjet Controller supports multiple printheads and UV curing systems, making it a flexible solution for diverse printing requirements. Featuring an 8-inch industrial-grade capacitive touchscreen, the Android-based user interface simplifies operation with intuitive controls and multilingual support. The controller enables advanced variable data printing, supporting barcodes, images, databases, and more. With its robust open platform, customizable software, and complete SDK protocols, the controller meets a wide range of industrial printing demands while supporting various hardware interfaces for easy integration into existing systems.

Key features include:

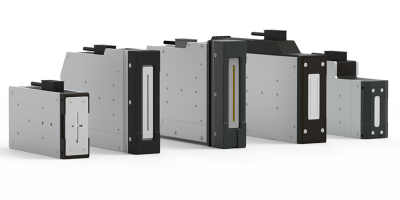

Compatibility with a variety of printheads, ensuring adaptability to different production needs.
Advanced variable data printing for barcodes, counters, and database-driven content.
Customizable open platform for specialized applications through plug-ins and updates.
Multiple connectivity options, including PLC, RS232, RS485, and Ethernet, for seamless integration.

Product Specification

Performance Data:

Operating System: Android (Controller), Windows (PC)
Supported Languages: English (default), Chinese, and others
Fonts: DroidSansFallback, Arial, and additional options
Input Methods: Various Android-supported input methods
Variable Data Printing: Text, Date & Time, Shifts, Counters, Images, Shapes, Database Integration
Barcode Types:
- Linear Barcodes: C25INTER, EAN8/EAN13, GS1 EAN128, CODE39, CODE93, CODE128 (A/B/C), UPCA, UPCE, ITF14, RSS14, and more
- Matrix Barcodes: QRCODE, GS1 QRCODE, PDF417, DataMatrix, GS1 DataMatrix, GridMatrix, AZTEC Code
Print Modes: Standard, Continuous, Back & Forth
Database Support: Text, Excel, Access, SQL Server

Hardware Specifications:

Ports: USB (x2), 12-pin I/O_1 (PLC, RS485, Alarm Light), 7-pin I/O_2 (Encoder, Photocell, RS232), Ethernet

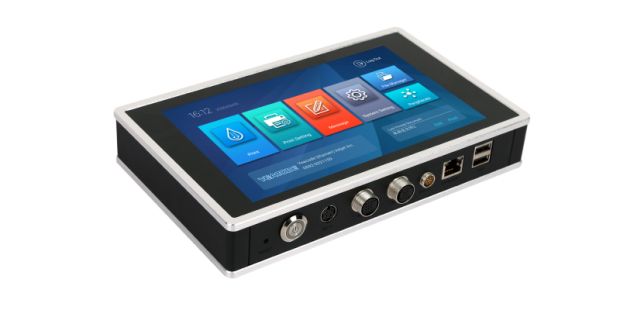

Display: 8-inch industrial-grade capacitive color touchscreen, resolution 1280 × 800
Power Supply: Input 110-240V; Output 24V, 5A
Hardware Dimensions: 222 × 143 × 38mm
Certifications: CE, FCC

Environmental Specifications:

Operating Temperature: 59°F (15°C) to 104°F (40°C)
Storage Temperature: 41°F (5°C) to 113°F (45°C)
