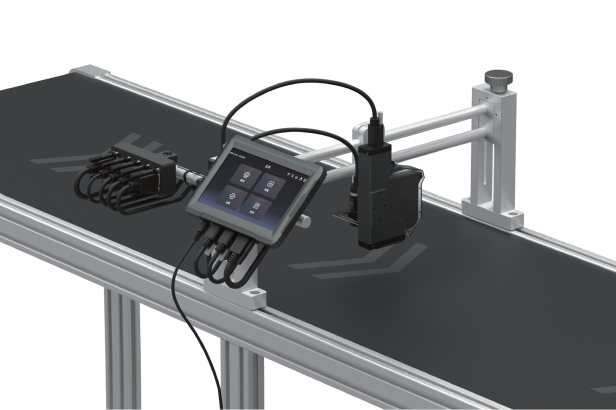

Xeme Standard Inline Inkjet Printer (1")

Product Model｜ Xeme

Product Introduction

A versatile inkjet printer offering enhanced print height and flexibility, ideal for medium-scale industrial marking applications.

Product Description

This 1-inch single-nozzle inkjet printer is designed for high-resolution industrial applications, offering exceptional clarity, stability, and efficiency. It features a 7-inch resistive touchscreen for real-time editing and supports variable data printing to meet diverse industrial needs. The system supports multiple languages and a wide range of print content, including text, serial numbers, barcodes, images, and database integration.

With a print speed of up to 76 meters per minute and a print height range of 2–25.4 mm, it delivers superior performance in dynamic production environments. It supports downward and sideward printing, making it highly adaptable for various production lines. Its advanced ink management system automatically detects ink types, optimizes printing parameters, and tracks ink usage for cost efficiency.

Product Specification

Performance Data

Print Resolution: Horizontal: 75–1200 DPI; Vertical: 75–600 DPI
Print Speed: Up to 76 meters/minute
Print Height: 2–25.4 mm
Print Distance: 1–5 mm
Supported Content: Text, serial numbers, date & time, barcodes (1D/2D), images, database content, network data
Supported Barcodes: UPCA, UPCE, EAN13, EAN8, CODE39, CODE128, CODE93, EAN128, QR, DataMatrix, GridMatrix

Hardware Specifications

Controller Dimensions: 187 × 124 × 37 mm

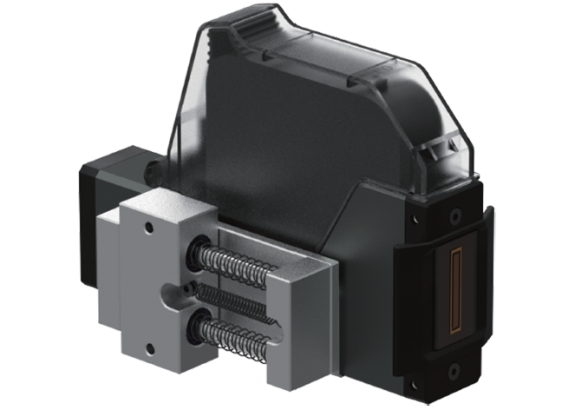

Nozzle Dimensions: 145 × 103 × 56.5 mm
Display: 7-inch resistive touchscreen, 1024 × 600 resolution
Interfaces: USB 2.0, RS232, RJ45; optional HDMI/aviation connectors
Power Supply: Input: AC110V–240V; Output: DC12V@5A

Software Specifications

Operating System: Linux 4.19
Languages: English, Simplified Chinese, Traditional Chinese, Korean, Japanese, Vietnamese, Thai, Italian, and more
Database Compatibility: MySQL, SQL Server
Font Support: Compatible with any installed font

Ink & Compatibility

Supported Inks: Water-based, solvent-based, UV, invisible inks
Ink Management: Auto-detection of ink type, optimized parameters, and ink usage tracking

Networking & Connectivity

Network: WIFI (802.11b/g/n), Bluetooth 4.0, wired LAN

Certifications

CE, FCC

Installation

Supports downward and sideward printing setups.
